Description

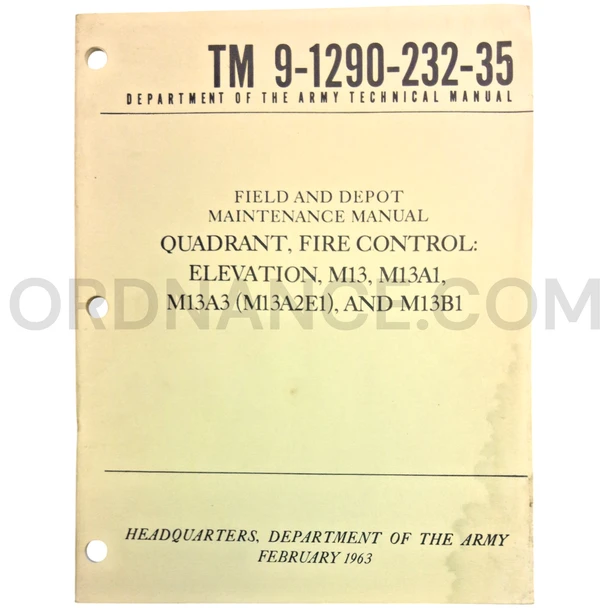

U.S. Army Technical Manual TM 9-1290-232-35 for M13-Series Elevation Fire Control Quadrants, February 1963
Item Overview
This U.S. Army technical manual covers field and depot maintenance for the M13, M13A1, M13A3/M13A2E1, and M13B1 Elevation Fire Control Quadrants. Issued in February 1963, TM 9-1290-232-35 was prepared for trained personnel responsible for repairing, adjusting, and testing these precision mechanical instruments. This listing is for the technical manual only. It does not include a quadrant, tank, weapon, test fixture, tool, or other equipment.
Publication Details
This manual documents several members of the M13 quadrant family, including the M13A3 and associated M13A2E1 designation.
- Manual number: TM 9-1290-232-35
- Publication date: February 1963
- Equipment covered: M13, M13A1, M13A3/M13A2E1, and M13B1
- Equipment type: Elevation Fire Control Quadrant
- Manual type: Field and depot maintenance
- Issuing authority: Headquarters, Department of the Army
- Country of origin: United States
- Item included: Technical manual only
Manual Coverage
The “35” suffix identifies this as a field-and-depot maintenance publication intended for work beyond routine crew care. Its technical guidance covers subjects such as inspection, troubleshooting, disassembly, cleaning, repair, reassembly, adjustment, calibration, and performance testing. The manual also helps explain the construction and working relationship of the quadrant’s level assembly, elevation scale, micrometer controls, mounting surfaces, and related mechanical parts.
About the M13-Series Quadrants
M13-series quadrants were mechanical indirect-fire instruments used to set or check a weapon’s elevation and depression angles. Each unit used a graduated elevation scale, fine micrometer adjustment, and level vial to establish an accurate angle in mils. The different model suffixes identify design changes made to fit specific fire-control systems and armored-vehicle configurations.
Development History
The original M13 was developed from the earlier T21 elevation quadrant during the post-World War II modernization of American tank fire control. The M13A1 refined the basic design, while the M13A2E1 and M13A3 represented later development. The M13B1 was another modified configuration. These changes allowed the same basic mechanical system to remain useful as tanks gained improved sights, range finders, ballistic drives, and ballistic computers.
Weapon-System History
Members of the M13 family served in several American armored-vehicle fire-control systems. The original M13 was used in early M48 Patton installations, while the M13A1 was associated with the M60 tank. The M13B1 was used in the M48A3, and the later M13A3 appeared in M60-series vehicles and the M728 Combat Engineer Vehicle. The exact quadrant model depended on the vehicle’s production date and fire-control configuration.
History of Use
The February 1963 publication date places this manual during the early Cold War, when the U.S. Army was expanding and modernizing its armored forces. M13-series quadrants supported training, inspection, calibration, maintenance, and indirect-fire work. Related vehicles later served during the Vietnam War and remained in American and allied service for many years, giving these mechanical instruments a long working life beside newer optical and electronic equipment.
Collector and Research Value
TM 9-1290-232-35 is a specialized reference for studying Cold War tank fire control and the development of the M13 quadrant family. It can help collectors and restorers identify model differences, internal components, adjustment points, and period maintenance methods. It is also valuable for research involving M48 and M60 tanks, the M728 Combat Engineer Vehicle, and mechanical gun-laying equipment.
Condition
This vintage military technical manual may show cover wear, edge wear, folds, yellowing, stains, writing, stamps, punched holes, loose pages, or other signs of age and storage. Printing details and condition may vary between available copies. Please check the pictures for the general condition of the item.
Ideal For
This manual is well suited for collections, restoration projects, and historical displays covering armored vehicles and military fire-control equipment.
- U.S. Army technical-manual collections
- M13-series quadrant identification
- M48 and M60 tank restoration
- M728 Combat Engineer Vehicle research
- Cold War fire-control displays
- Museum and archival collections
