U.S. Army Technical Manual TM 9-1240-322-35P for Infinity Sight 8635466, July 1964
Item Overview
This original U.S. Army technical manual is the field-and-depot maintenance repair-parts and special-tools reference for Infinity Sight 8635466. Issued as TM 9-1240-322-35P in July 1964, it helped military maintenance and supply personnel identify and order parts for this armored-vehicle fire-control sight. This listing is for the technical manual only. It does not include an infinity sight, periscope, weapon, vehicle, or other optical equipment.
Identification and Features
The “35P” suffix identifies this as a field-and-depot repair-parts publication. Unlike the related maintenance manual, this edition focuses on replacement components, stock numbers, part numbers, illustrations, and special tools.
- Manual number: TM 9-1240-322-35P
- Publication date: July 1964
- Subject: Infinity Sight 8635466
- Later model identification: M45C Infinity Sight
- Official item name: Sight, Infinity
- Part number: 8635466
- Federal Stock Number: 1240-056-4854
- Later National Stock Number: 1240-00-056-4854
- Federal Supply Class: 1240, Optical Sighting and Ranging Equipment
- Manual type: Field-and-depot maintenance repair parts and special tools
- Related maintenance manual: TM 9-1240-322-35, August 1964
- Primary vehicle application: M728 Combat Engineer Vehicle
- Associated periscope: M32C gunner’s periscope
- Related military specification: MIL-S-46371
- Issuing authority: Headquarters, Department of the Army
- Country of origin: United States
- Item included: Technical manual only
Manual Coverage
This publication was created to support parts identification, ordering, and higher-level maintenance. Manuals of this type normally contain exploded illustrations, item numbers, official part names, stock or manufacturer numbers, quantities, supply codes, maintenance codes, and special-tool information. It is a parts reference rather than a complete operating or repair guide.
How the Infinity Sight Worked
Infinity Sight 8635466 projected an illuminated aiming pattern into the viewing window of the M32C periscope. The projected pattern included a 20-mil circle used for aiming the vehicle’s coaxial machine gun. Controls allowed the crew to adjust elevation, azimuth, and light intensity. The sight included optical, electrical, and mechanical parts that required accurate identification during repair and replacement.
Weapon and Vehicle Application
The infinity sight was used with the M32C gunner’s periscope on the M728 Combat Engineer Vehicle. The M32C served as the gunner’s secondary direct-fire sight for the vehicle’s 165mm M135 demolition gun and as the primary direct sight for its coaxial 7.62mm machine gun. The separate M105F telescope was the main direct-fire sight for the 165mm gun, so the infinity sight should not be confused with the primary demolition-gun sight.
Historical Background
This manual was issued while the M728 was still being prepared for Army service. Developed from the M60-series tank, the M728 combined an armored chassis with a dozer blade, winch, crane boom, and 165mm demolition gun. It entered service during the mid-1960s and supported combat engineers in clearing obstacles, breaking fortified positions, and moving debris. M728 vehicles later served during the Vietnam War and Gulf War. The infinity sight remained part of the documented fire-control system for many years, making this manual a useful record of Cold War armored-engineering equipment.
Condition

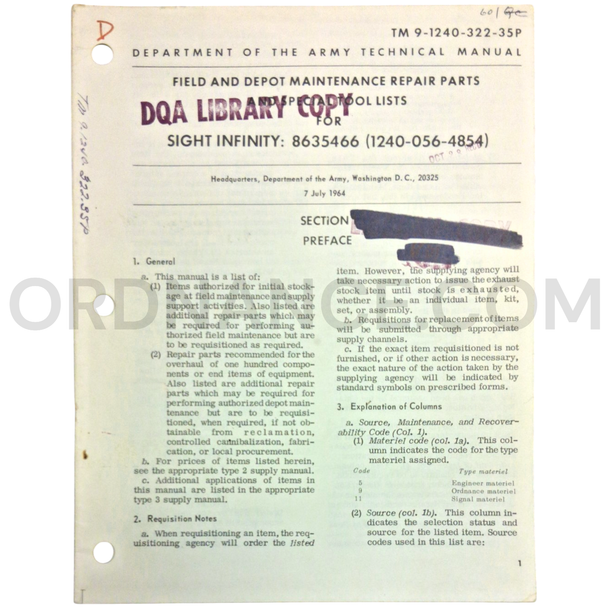

Please check the pictures for the general condition of the item. This listing is for one TM 9-1240-322-35P technical manual only; the Infinity Sight 8635466, M32C periscope, weapons, vehicle, and other equipment are not included.
Ideal For
This specialized manual is useful for collectors, museums, restorers, and researchers studying U.S. Army optical equipment and armored combat-engineering systems.
- U.S. Army technical-manual collections
- Infinity Sight 8635466 parts research
- M45C infinity sight restoration references
- M728 Combat Engineer Vehicle restoration
- M32C periscope and fire-control research
- 165mm M135 weapon-system collections
- Vietnam War and Gulf War displays
- Military museum and archival collections
Approx length 8", Approx width 10", Approx height .15", Approx weight .2lbs.
