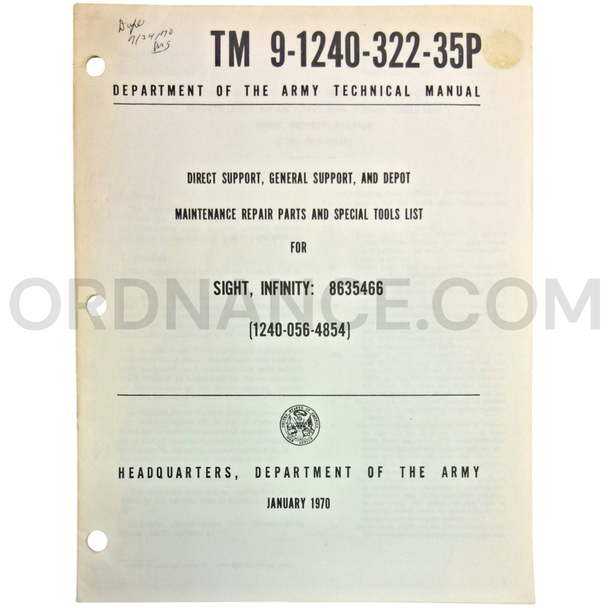

U.S. Army Technical Manual TM 9-1240-322-35P for Infinity Sight 8635466, January 1970
Item Overview
This original U.S. Army technical manual is the direct-support, general-support, and depot-maintenance repair-parts reference for Infinity Sight 8635466. Issued as TM 9-1240-322-35P in January 1970, it helped military maintenance and supply personnel identify and order components for this armored-vehicle fire-control sight. This listing is for the technical manual only. It does not include an infinity sight, periscope, weapon, vehicle, or other optical equipment.
Identification and Features
The “35P” suffix identifies this as a higher-level repair-parts and special-tools publication. Unlike the related maintenance manual, this edition focuses on replacement components, stock numbers, part numbers, illustrations, and supply information.
- Manual number: TM 9-1240-322-35P
- Publication date: January 1970
- Subject: Infinity Sight 8635466
- Official item name: Sight, Infinity
- Part number: 8635466
- Federal Stock Number: 1240-056-4854
- Later National Stock Number: 1240-00-056-4854
- Federal Supply Class: 1240, Optical Sighting and Ranging Equipment
- Manual type: Repair parts and special tools list
- Maintenance levels: Direct support, general support, and depot maintenance
- Primary vehicle application: M728 Combat Engineer Vehicle
- Associated periscope: M32C gunner’s periscope
- Issuing authority: Headquarters, Department of the Army
- Country of origin: United States
- Item included: Technical manual only
Manual Coverage
This publication was prepared to support parts identification, ordering, and higher-level maintenance. Manuals of this type normally contain exploded illustrations, item numbers, official part names, stock or manufacturer numbers, quantities, supply codes, maintenance codes, and special-tool information. It is a parts reference rather than a complete operating or repair manual.
How the Infinity Sight Worked
Infinity Sight 8635466 projected an illuminated aiming pattern into the unity window of the M32C gunner’s periscope. The projected pattern included a 20-mil circle used when aiming the vehicle’s coaxial machine gun. Elevation and azimuth controls allowed the sight to be aligned, while a light control adjusted the brightness of the aiming pattern.
Weapon and Vehicle Application
The infinity sight was part of the fire-control equipment used on the M728 Combat Engineer Vehicle. The M32C periscope served as the gunner’s secondary direct-fire sight for the 165mm M135 demolition gun and as the primary direct sight for the coaxial 7.62mm machine gun. The separate M105F telescope was the main direct-fire sight for the 165mm gun, so the infinity sight should not be confused with the primary demolition-gun sight.
Historical Background
The M728 was developed from the M60-series tank and entered Army service during the mid-1960s. It combined armor protection with a dozer blade, winch, crane boom, and 165mm demolition gun. Combat engineers used the vehicle to clear obstacles, break fortified positions, move debris, and support armored units. M728 vehicles served during the Vietnam War and Gulf War. The January 1970 manual reflects continued Army support for the infinity sight after the M728 entered regular service.
Condition
Please check the pictures for the general condition of the item. This listing is for one TM 9-1240-322-35P technical manual only; the Infinity Sight 8635466, M32C periscope, weapons, vehicle, and other equipment are not included.
Ideal For
This specialized publication is useful for collectors, museums, restorers, and researchers studying U.S. Army optical equipment and armored combat-engineering systems.
- U.S. Army technical-manual collections
- Infinity Sight 8635466 parts research
- M728 Combat Engineer Vehicle restoration
- M32C gunner’s periscope research
- 165mm M135 weapon-system collections
- Cold War fire-control equipment displays
- Vietnam War and Gulf War exhibits
- Military museum and archival collections
Approx length 8", Approx width 11", Approx height .2", Approx weight .25lbs.
