Description

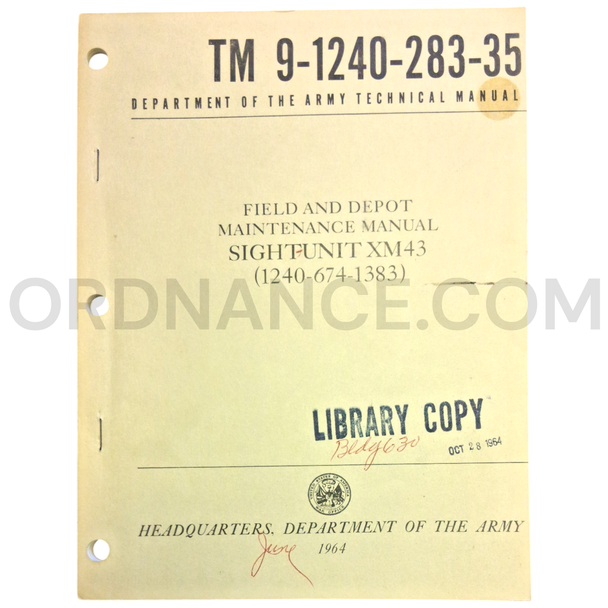

Technical Manual (TM 9-1240-283-35) for XM43 Sight Unit June 1964 FSN 1240-674-1383
Technical Manual (TM 9-1240-283-35) for XM43 Sight Unit, FSN 1240-674-1383 – June 1964
Item Overview
This June 1964 U.S. Army technical manual provides field and depot maintenance instructions for the XM43 Optical Sight Unit. The complete sight unit is identified by FSN 1240-674-1383, later written as NSN 1240-00-674-1383.
The XM43 was designed for the XM33 Honest John rocket launcher. It provided the optical equipment needed to aim and align the launcher before firing.
This listing is for the technical manual only. It does not include an XM43 sight unit, telescope, adapter, mount, launcher, or other equipment.
Purpose of the XM43 Sight Unit
The XM43 was a launcher-mounted optical aiming assembly. It gave the crew a clear line of sight for setting the Honest John launcher to the required direction and elevation.
The sight unit included three main components:
- M62A1D Elbow Telescope
- M9A1 Telescope Adapter
- Telescope Mount, part number 8228899
The elbow telescope provided the optical view. The adapter connected the telescope to the mounting system. The mount allowed controlled adjustments for accurate launcher alignment.
The XM43 was part of the launcher’s fire-control equipment. It was not a sight installed on the rocket.
Historical Background
The Honest John was developed during the early 1950s as a mobile, free-flight field-artillery rocket. It became the first U.S. Army rocket system capable of carrying an atomic warhead. It could also carry conventional payloads.
Because the Honest John was unguided after launch, crews had to carefully position and align the launcher before firing. Optical equipment such as the XM43 helped establish the correct direction and elevation.
The XM43’s experimental “XM” designation reflects the development and early-service history of the equipment. This June 1964 manual was published during the Cold War, when Honest John units formed an important part of U.S. and allied field artillery.
The Honest John remained in service until newer tactical missile systems replaced it during the 1970s.
Manual Contents
TM 9-1240-283-35 covers advanced maintenance of the XM43 Sight Unit. Subjects include:
- Description and operating principles
- Inspection and troubleshooting
- Disassembly and reassembly
- Cleaning and repair procedures
- M62A1D Elbow Telescope maintenance
- M9A1 Telescope Adapter maintenance
- Telescope Mount 8228899 maintenance
- Optical alignment and adjustment
- Final inspection and performance testing
- Required field and depot maintenance tools
These procedures helped trained personnel return damaged or inaccurate sight units to required military standards.
Identification
- Manual number: TM 9-1240-283-35
- Publication date: June 1964
- Covered equipment: XM43 Optical Sight Unit
- Federal Stock Number: 1240-674-1383
- Manual type: Field and depot maintenance
- Elbow telescope: M62A1D
- Telescope adapter: M9A1
- Telescope mount part number: 8228899
- End-item application: XM33 Honest John rocket launcher
- Equipment category: Launcher sighting and fire-control equipment
Collector and Research Value
This manual documents specialized optical equipment used with one of America’s best-known Cold War artillery rockets. It is a valuable reference for Honest John launcher restoration, military-optics research, and tactical-rocket displays.
Ideal For
- Honest John rocket-system collections
- XM33 launcher restoration projects
- XM43 Sight Unit research
- Military-optics collections
- Cold War artillery displays
- Museum and technical-library collections
