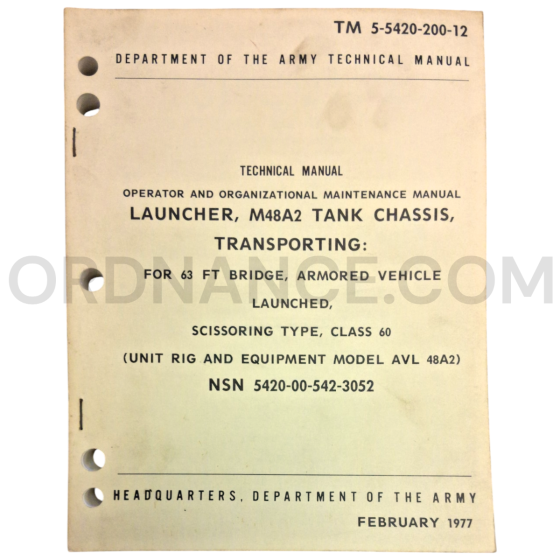

This Technical Manual TM 5-5420-200-12 covers the AVL 48A2 Launcher and AVL Armored Vehicle Launched Bridge, identified under NSN 5420-00-542-3052, and is dated February 1977. This edition supersedes TM 5-5420-200-12 issued on March 14, 1962, making it an important later-service reference for collectors, researchers, restorers, and anyone building a serious library of U.S. Army combat engineer and mobility-support documentation.
Because this is a -12 technical manual, it belongs to the operator and organizational maintenance side of Army documentation. In practical terms, manuals in this category were intended to support day-to-day use, inspection, servicing, and unit-level maintenance of the equipment covered. That makes this publication especially useful for collectors who want a service-era manual with practical technical content rather than just a general historical reference.
The AVL 48A2 Launcher and AVL Armored Vehicle Launched Bridge
The AVL 48A2 Launcher and AVL Armored Vehicle Launched Bridge belong to the broader family of U.S. military combat engineer, armored mobility, and obstacle-crossing equipment. As identified by the title, this system was designed to launch and emplace a bridge from an armored vehicle platform, placing it squarely in the support side of battlefield mobility rather than in the category of conventional weapons.
Systems in this class were associated with rapid gap-crossing and obstacle reduction, allowing armored and mechanized forces to continue movement across ditches, cuts, canals, and other barriers that could otherwise delay or stop an advance. That makes this manual especially interesting from a historical standpoint. Instead of documenting a tank or weapon alone, it preserves the technical side of the specialized engineer equipment that kept combat formations moving.
For collectors, that gives this manual added appeal. It represents the mobility and engineer side of Army readiness and fits especially well in collections focused on armored engineer vehicles, bridge-launching systems, tracked support equipment, and Cold War combat engineering.
What This Manual Covers
As an operator and organizational maintenance technical manual, TM 5-5420-200-12 would have been intended to support the practical service use of the AVL 48A2 Launcher and AVL Armored Vehicle Launched Bridge at the unit level.
In practical terms, a manual like this is especially relevant for:
- nomenclature and identification
- operator-level procedures
- launcher and bridge handling reference
- inspection and servicing guidance
- organizational maintenance information
- archival and restoration research
The fact that this 1977 edition supersedes the March 14, 1962 issue also gives it added value for collectors who prefer later, updated Army manuals rather than only early-print editions.
Historical Significance
The date February 1977 places this publication in the later Cold War period, when the U.S. military maintained extensive technical literature covering not only weapons and armored vehicles, but also the engineer equipment required to preserve battlefield mobility. Manuals like this reflect a period when Army documentation extended into every part of the combat-support chain, including bridge-launching systems, armored engineer support vehicles, maintenance tools, and field mobility equipment.
For collectors and historians, this manual is especially relevant to subjects such as:
- Cold War U.S. Army technical manuals
- armored vehicle launched bridge systems
- combat engineer and mobility-support equipment
- armored bridging and obstacle-crossing equipment
- dated military technical publications
Because it covers a specialized bridge-launching system rather than a more common tactical vehicle or weapon system, it also adds variety to collections that already include standard ordnance or maintenance manuals.
About This Manual
This listing is for Technical Manual TM 5-5420-200-12 for the AVL 48A2 Launcher and AVL Armored Vehicle Launched Bridge, identified under NSN 5420-00-542-3052 and dated February 1977.
This edition supersedes the earlier TM 5-5420-200-12 issued on March 14, 1962.
It is especially well suited for:
- U.S. Army technical manual collections
- Cold War engineer and armored-support displays
- bridge-launching and mobility-equipment collections
- museum exhibits on military engineer and support systems
- archive and research libraries focused on U.S. military technical publications
Because manuals were working documents, surviving examples are valued not only for their content, but also for their connection to real military training, maintenance, and support practice.
Why This Manual Matters
Many military manuals focus on tanks, artillery, or standard vehicles. This one documents the support side of battlefield mobility, specifically an armored bridge-launching system used to keep forces moving across obstacles. That makes it especially useful for collectors who want to preserve the broader technical and logistical picture of Army operations rather than only front-line combat hardware.
For collectors, it is a solid stand-alone Cold War technical manual with a specialized subject focus. For researchers, it offers a useful reference point for Army armored bridging documentation and engineer support history. For museums, it helps explain the behind-the-scenes systems that supported route opening, obstacle crossing, and operational mobility in the field.
