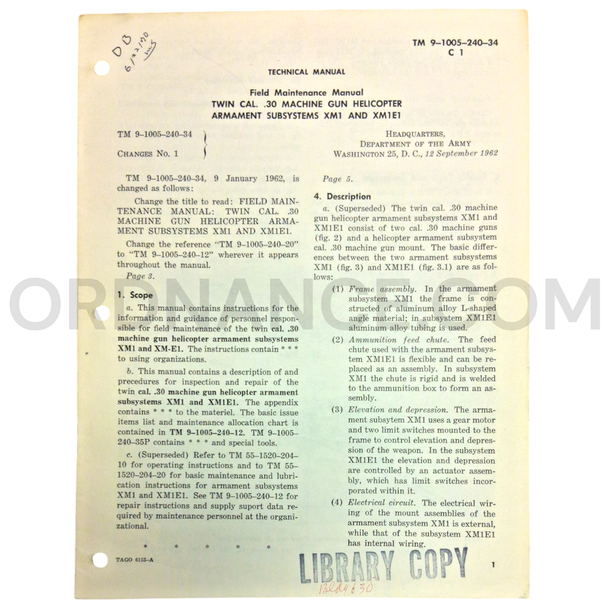

Technical Manual Change 1 (TM 9-1005-240-34) for .30cal XM1 and XM1E1 Twin Machine Gun Helicopter Armament Subsystems September 1962
Add a rare piece of early U.S. Army helicopter armament documentation to your collection with this Technical Manual Change 1 for TM 9-1005-240-34, covering the Twin Cal. .30 Machine Gun Helicopter Armament Subsystems XM1 and XM1E1. Dated September 1962, this change notice updates the original TM 9-1005-240-34, issued January 9, 1962.
This is the Change 1 update only, not the full base manual. For collectors, that makes it a valuable companion piece for completing the official documentation history of the XM1 / XM1E1 helicopter armament subsystem.
Historical Significance
The XM1 and XM1E1 helicopter armament subsystems belong to the early period of U.S. Army helicopter gunship development. Before dedicated attack helicopters and later UH-1 armament packages became standard, the Army experimented with machine gun systems for light observation helicopters.
Archival records identify the original TM 9-1005-240-34 as a Field Maintenance Manual for Twin Helicopter Mounting Cal. .30 Machine Gun XM1, dated January 1962. The same archive series also lists a later TM 9-1005-240-34 entry for Twin Cal. .30 Machine Gun Helicopter Armament Subsystems XM1 and XM1E1, dated September 1962, placing this change notice in the exact early development period of the system.
That gives this manual strong historical appeal. It documents an early armed-helicopter subsystem from the period when the U.S. Army was still defining how helicopters would be armed, maintained, and supported in the field.
The XM1 and XM1E1 Helicopter Armament Subsystems
The XM1 subsystem was associated with light helicopters such as the OH-13 Sioux and OH-23 Raven. Redstone Arsenal history notes that the OH-13 Sioux could be armed with twin M37C .30 caliber machine guns on the XM1 armament subsystem, while later systems used 7.62mm M60C machine guns on the M2 subsystem.
Helicopter armament references describe the XM1 as using two M37C .30-06 machine guns mounted on the landing skids of the OH-13 or OH-23. The weapons were fixed forward with flexible elevation, and ammunition was stored externally. The XM1E1 is identified as the product-engineering design of the system.
This makes the manual especially relevant to collectors interested in:
- early U.S. Army helicopter gunship development
- OH-13 Sioux and OH-23 Raven armament
- M37C .30 caliber aircraft machine gun systems
- Vietnam War aviation origins
- Cold War helicopter weapons experimentation
- pre-UH-1 standardized armament systems
What This Change Covers
As Change 1 for TM 9-1005-240-34, this publication updated the field maintenance manual for the XM1 and XM1E1 Twin Cal. .30 Machine Gun Helicopter Armament Subsystems.
This manual change is especially relevant for:
- XM1 helicopter armament subsystem documentation
- XM1E1 helicopter armament subsystem reference
- field maintenance manual collections
- H-13 / OH-13 Sioux armament research
- OH-23 Raven armament research
- early Vietnam War helicopter weapons displays
- .30 caliber aircraft machine gun support documentation
- U.S. Army aviation ordnance technical manual collections
- collectors completing a TM 9-1005-240-34 manual set
Manual changes were working updates. They were often separated from the base manuals over time, which makes surviving examples useful to collectors who want the full publication trail.
Key Features
- Technical Manual Change 1 for TM 9-1005-240-34
- Covers Twin Cal. .30 Machine Gun Helicopter Armament Subsystems XM1 and XM1E1
- Dated September 1962
- Updates the original manual issued January 9, 1962
- Connected to early U.S. Army helicopter armament development
- Associated with H-13 / OH-13 Sioux and OH-23 Raven helicopter armament history
- Related to twin M37C .30 caliber machine gun installations
- Strong Cold War / early Vietnam War aviation collector subject
- Valuable companion piece for completing a TM 9-1005-240-34 manual set
About This Manual Change
This listing is for Technical Manual Change 1 for TM 9-1005-240-34, covering the .30 Cal XM1 and XM1E1 Twin Machine Gun Helicopter Armament Subsystems, dated September 1962.
This listing is for the Change 1 update only unless otherwise stated. No complete base manual, helicopter, machine gun, armament subsystem, mount, sight, ammunition, tools, repair parts, storage case, or additional accessories are included unless specifically shown or noted.
Ideal For
This manual change is a strong fit for:
- Vietnam War helicopter aviation collectors
- OH-13 Sioux and OH-23 Raven reference collections
- early helicopter gunship development displays
- U.S. Army aviation ordnance manual collections
- .30 caliber aircraft machine gun equipment displays
- Cold War technical manual collections
- museum and archival reference libraries
- collectors completing a helicopter armament subsystem manual set
Approx length 10", Approx width 8", Approx height .2", Approx weight .2lbs.
