Mark 68 Mod 1 Mount for Mark 16 20mm Autocannon
$29,995.00
In stock
SKU
Mark 68 Mod 1 Mount for Mark 16 20mm Autocannon
Toggle Nav
The #1 Online Source for Military Museum Displays • Movie Props • Training Aids • Historical Artifacts
Newly Manufactured Mark 68 Mod 1 Mount for 20mm Mark 16 Autocannon
Custom-built from original U.S. Navy drawings – 2–3 month lead time – display guns only (not for live fire)
Complete your Vietnam- and Cold War–era display, gunboat or patrol craft display with this newly manufactured Mark 68 Mod 1 mount, purpose-built for the 20mm Mark 16 autocannon. Produced directly from original engineering drawings and fabricated with modern CNC machining and CNC waterjet components, this mount is engineered to be visually and functionally equivalent to an original Mk 68 Mod 1 naval mount—while being constructed as a display-only, non–live-fire piece.

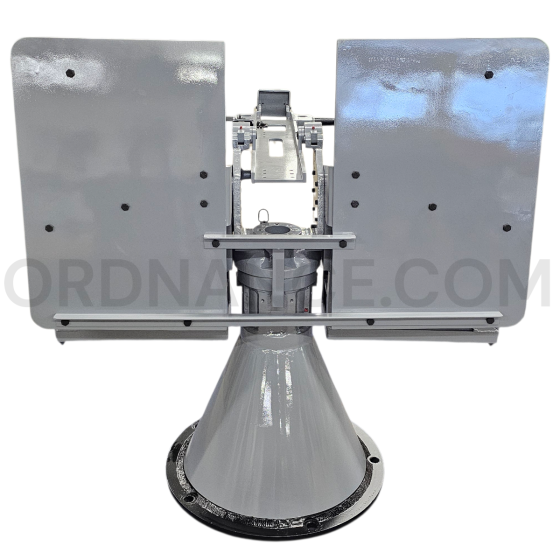

The mount shown in the photos is an original Mark 68 Mod 1. The mount you receive will match it in appearance, geometry, and basic function, but will be newly manufactured from CNC-cut and CNC-machined parts rather than castings.
This item is custom-made to order and has an estimated 2–3 month lead time.
Important: This mount is built for display guns only. It is not engineered, proofed, or warranted for live fire and must not be used as a functional weapons mount.
Historical Background – 20mm Mk 16 on Small Combatants
The 20mm Mark 16 autocannon is a U.S. Navy adaptation of aircraft-style 20mm guns (such as the AN/M3 and M24 series), chambered in 20×110mm Hispano ammunition, not the 20×110mm USN round. In naval service, it became a compact, fast-firing anti-personnel and close-in anti-surface weapon, ideal for riverine, coastal, and patrol craft where space and weight were at a premium.
During and after the Vietnam War, Mk 16 guns showed up on a variety of small craft and patrol vessels, where they excelled at engaging small boats, shoreline targets, and exposed personnel. Later, foreign and allied navies continued to mount Mk 16 guns for decades on small offshore patrol vessels and gunboats.
To carry these guns, the Navy used dedicated single mounts such as the Mk 67 and Mk 68. These pedestal mounts provided hand-aimed azimuth and elevation for the gunner and integrated ready-use ammunition boxes. The Mk 68 mount was a heavier single mount optimized for broader elevation arcs and greater stability, making it a natural fit for seagoing patrol craft and gunboats that needed reliable, close-range firepower.
By the late 1970s and 1980s, the U.S. Navy began replacing 20mm Mk 16 systems with the 25mm M242 Bushmaster–based Mk 38 gun system, but many ships and foreign navies retained Mk 16 guns on Mk 68 mounts well into the modern era.
About This New-Manufacture Mk 68 Mod 1 Mount
- Based on Original U.S. Navy Drawings
- Dimensions, geometry, and gun/mount interfaces are taken directly from original Mark 68 Mod 1 documentation.
- Designed to accept the 20mm Mark 16, M24, M24A1 autocannons
- Modern CNC & Waterjet Construction
- Fabricated from CNC-machined and CNC waterjet-cut components rather than legacy castings.
- Preserves the correct external profile, proportions, and details of the original mount while delivering modern consistency and fit quality.
- Visually and Functionally Correct – For Display Use
- Externally, the mount replicates the appearance of a service Mk 68 Mod 1: pedestal base, yoke/cradle area, and provisions for dual ammunition boxes similar to original naval installations (historically carrying up to about 400 rounds on some patrol craft).
- Provides the same style of manual train and elevation movement appropriate for a 20mm deck gun station.
- Intended for static or manually traversed display guns only, not for recoil-bearing or live-fire use.
- Custom-Made with Lead Time
- Each mount is built to order.
- Typical lead time is 2–3 months, depending on production schedule.
Display-Only / Safety Notes
- This mount is not engineered, heat-treated, or certified as a live-fire naval weapons mount.
- It is designed specifically for:
- Inert or display 20mm guns
- Cutaway or demilled receivers
- Museum, memorial, or private collection displays
- Do not attempt to fire live ammunition or operate a functional weapon on this mount.
- Ideal For
- Vietnam-era riverine and fast patrol boat displays featuring the 20mm Mk 16
- Museum ships and coastal patrol craft restorations are missing the original 20mm mounts.
- High-end private collections that already have a Mk 16 display gun and need a correct naval pedestal
- Film, television, or reenactment builds require a full-size, historically correct 20mm naval mount without the liability of a live-fire system.
This newly manufactured Mark 68 Mod 1 mount for the 20mm Mark 16 autocannon delivers authentic Cold War and Vietnam-era U.S. Navy styling, modern CNC build quality, and a clear display-only safety profile—perfect for completing your 20mm naval gun installation in a historically accurate way.
This listing is for the Mark 68 Mod 1 mount only. The pictures with the 20mm Mark 16 are for reference only.
Approx length 4", Approx width 4", Approx height 5", Approx weight 800lbs.
Pictures are stock images of our inventory. Unless otherwise noted, you will not be receiving the exact item shown in the pictures. The pictures are representative of the item's general condition. The item you receive might be slightly better, or worse, condition than was shown in the pictures.
Please visit our page about order lead times here: Order Lead Times
