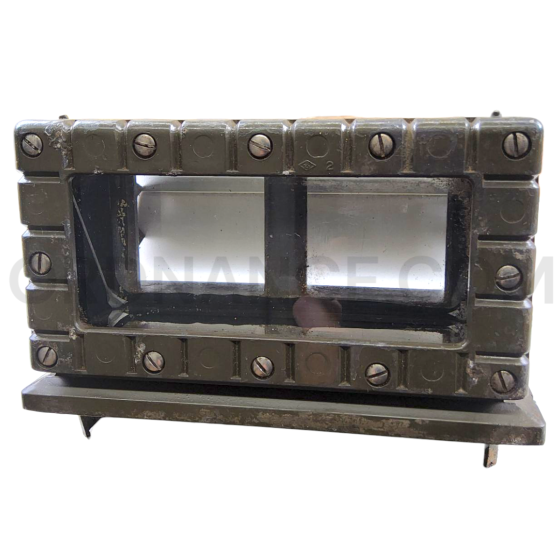

M19 / M24 Periscope Head Assembly
$225.00
In stock
SKU
M19 / M24 Periscope Head Assy
Toggle Nav
The #1 Online Source for Military Museum Displays • Movie Props • Training Aids • Historical Artifacts
New Old Stock U.S. Military Surplus – Periscope Head Assy for M47, M60, M113, M163, M728 & More
Offered for sale is an original M19 / M24 Periscope Head Assembly, part number 7688707, cataloged under NSN 1240-00-768-8707. This component is a genuine U.S. military surplus optical head used as part of the sighting and fire control systems on a wide range of tracked vehicles during the Cold War and post-war periods.
This periscope head assembly was integrated into systems requiring stabilized sighting, target tracking, or crew observation without direct line-of-sight exposure. Designed for durability and clarity this optic was fielded on iconic platforms including the M47 Patton, M60 Main Battle Tank, M163 VADS (Vulcan Air Defense System), M728 CEV (Combat Engineer Vehicle), and the M113 Armored Personnel Carrier.
Historical Significance
The M19 and M24 periscopes represented a leap forward in fire control optics for U.S. armored vehicles from the 1950s through the 1980s. Serving in some of America’s most critical mechanized units, this periscope head was designed for low-light visibility, ballistic alignment, and compatibility with various gunners’ and commanders’ sighting stations. It was often used in conjunction with rangefinders, ballistic computers, and secondary vision systems.
Its use on diverse platforms—from anti-aircraft systems like the M163 to heavily armored tanks and engineering vehicles—underscores its adaptability and wide operational deployment. Whether used for main gun targeting or battlefield observation, this component helped ensure accuracy and crew survivability in both combat and training environments.
Product Specifications
- Item: M19 / M24 Periscope Head Assembly
- Condition: U.S. military surplus
- Part Number: 7688707
- NSN: 1240-00-768-8707
- Material: Cast aluminum housing, sealed optical glass
- Era of Use: 1950s–1990s
- Applications:
- M47 Patton
- M60 MBT
- M163 VADS
- M113 APC
- M728 CEV
Ideal For:
- M60 series tank restorations
- Cold War U.S. armored vehicle displays
- Fire control system reenactment or demonstration
- Replacement for existing optics in military training programs
- Collectors of tank and fire control components
This authentic M19 / M24 Periscope Head Assembly is a rare opportunity to acquire a critical component from multiple historic American fighting vehicles. It’s perfect for restorers, collectors, and museums alike.
Approx length 6", Approx width 2.5", Approx height 5", Approx weight 2lbs.
Pictures are stock images of our inventory. Unless otherwise noted, you will not be receiving the exact item shown in the pictures. The pictures are representative of the item's general condition. The item you receive might be slightly better, or worse, condition than was shown in the pictures.
