Soviet R-60 / AA-8 Aphid Infrared Seeker Assembly with Removable Nose Housing
Item Overview
This Soviet R-60 family infrared seeker assembly includes its removable nose housing. NATO identified the parent air-to-air missile as the AA-8 “Aphid.” The exposed optical head and stacked electronics give collectors a view inside a Cold War heat-seeking missile. This is the only 1 available, so you will be receiving the exact unit in the photos.
Identification and Features
The housing, internal assembly, and Russian markings provide several useful identification features.

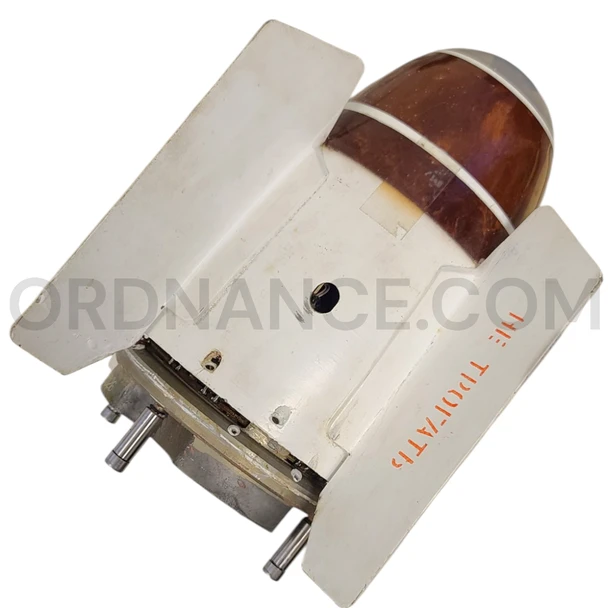

- White nose housing: Removable outer section with an infrared window through which the seeker received heat energy.
- Four fixed nose fins: Small surfaces called destabilizers, separate from the missile’s movable control fins.
- Exposed optical head: The gyroscopically stabilized part of the seeker, designed to maintain its viewing direction as the missile moved.
- Stacked circular circuit boards: Associated seeker electronics arranged behind the optical assembly.
- НЕ ТРОГАТЬ: Orange Russian warning stencil meaning “DO NOT TOUCH.”
- 16РНВ3526: Marking repeated on the housing and the internal assembly’s mounting flange. The matching characters support that the two pieces belong together; their detailed factory-code meaning remains unverified.
Function
The seeker detected and tracked infrared energy from a target aircraft, then supplied tracking information to the missile’s flight-control system. Infrared is energy associated with heat and is invisible to the human eye. The original military manual describes the seeker as an optical–gyroscopic assembly coupled to an electronics block. The nose window protected the optical head while allowing infrared energy to reach it.
Documented End-Item Application
The identified end item is the Soviet R-60 missile family. Museum records document R-60 armament on the MiG-21M and MiG-23 fighter families and the Su-22M4 fighter-bomber. These records establish applications for the missile family.
Product History
The original R-60 used an infrared seeker called Komar, Russian for “Mosquito.” Its compact guidance package brought together optics, gyroscopic stabilization, and electronics within the missile’s nose. This assembly represents that period of Soviet electro-optical development, when a moving optical head and its associated electrical circuits worked together to follow a heat source. Komar identifies the original missile’s seeker design.
Parent-Equipment History
The R-60 was a Molniya design from the early 1970s, developed as a lightweight weapon for close-range air combat. The RAF Museum catalogs a Molniya R-60 with a production date of 1973, providing a dated reference for the parent missile. Its distinctive layout included small fixed nose fins, movable forward control surfaces, and larger rear wings. The compact missile became part of the weapons carried by several Soviet-designed aircraft.
Weapon-System Background
Soviet heat-seeking air-to-air weapons predated the R-60. The earlier K-13, known to NATO as the AA-2 “Atoll,” grew from a recovered American Sidewinder in 1958. By the 1970s, aircraft such as the MiG-23 carried a mix of weapons for different air-combat roles. The R-60 supplemented earlier short-range missiles, while larger R-23 missiles served the medium-range role. This placed the Aphid within a broader aircraft weapons system rather than making it the fighter’s only air-to-air weapon.
History of Use
The R-60 family equipped Soviet and export aircraft during the later Cold War. Its documented carriers included fighters and aircraft built mainly for ground attack, showing the missile’s use across different aviation roles. Polish museum records place R-60 armament on MiG-23 aircraft delivered in 1979, 1981, and 1982, and on Su-22M4 aircraft introduced to Polish service during the 1980s. These are historical examples of the parent missile’s service, rather than a service record for this particular assembly.
Condition
Please check the pictures for the general condition of the item.
Ideal For
The removable housing allows this assembly to show both the missile’s external nose shape and its internal seeker components, making it useful for collections and educational displays.
- Cold War aviation and Soviet missile collections.
- Displays about infrared guidance and electro-optical equipment.
- Museum exhibits explaining air-to-air missile development.
- Aircraft armament displays featuring the R-60 / AA-8 Aphid family.
Approx length 9", Approx width 6", Approx height 6", Approx weight 4.9lbs.
