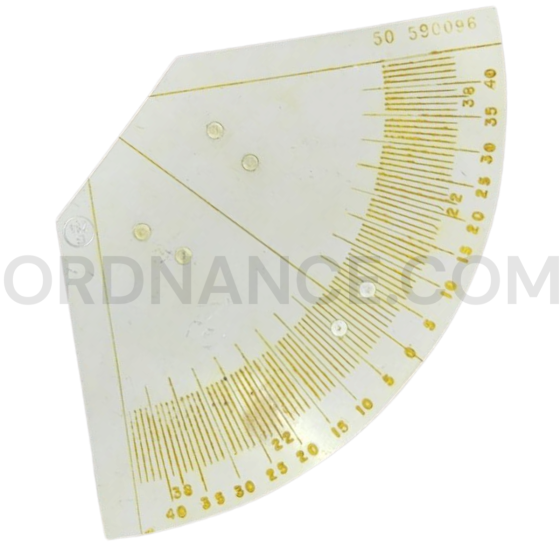

Available now is a New Old Stock (NOS) Aileron Elevator Travel Board, part number 8636282, cataloged under Federal Stock Number (FSN) 5220-545-6083. This precision tool was originally manufactured for U.S. military aviation maintenance and is essential for accurately measuring the travel limits of ailerons and elevators during aircraft inspections and control surface adjustments.

Historical Context

The Aileron Elevator Travel Board was developed to ensure precise measurement of control surface deflections on military aircraft. Accurate measurement of aileron and elevator travel is critical for maintaining optimal flight control and safety. This tool was standard equipment in military aviation maintenance kits, used extensively during routine inspections and after control system repairs to verify that control surfaces moved within specified parameters.

While specific aircraft applications for this part number are not readily available, tools of this nature were commonly used across various fixed-wing aircraft platforms, including fighters, bombers, and transport aircraft, throughout the mid to late 20th century.

Product Details

  • Item: Aileron Elevator Travel Board
  • Condition: New Old Stock – unused, preserved in original military surplus condition
  • Part Number: 8636282
  • FSN: 5220-545-6083
  • Function: Measures the angular travel of aileron and elevator control surfaces
  • Application: Aircraft maintenance and inspection procedures

Ideal For:

  • Military aviation maintenance professionals
  • Aircraft restoration specialists
  • Aviation museums and historical displays
  • Collectors of military aviation tools and equipment
  • Educational institutions with aviation maintenance programs

This NOS Aileron Elevator Travel Board is a valuable addition to any collection of military aviation maintenance tools. Its preserved condition makes it suitable for both practical use in aircraft restoration projects and as a historical display piece reflecting the precision tools used in military aviation history.

Approx length 7", Approx width 4", Approx height .1", Approx weight .1lbs.

Pictures are stock images of our inventory. Unless otherwise noted, you will not be receiving the exact item shown in the pictures. The pictures are representative of the item's general condition. The item you receive might be slightly better, or worse, condition than was shown in the pictures.
