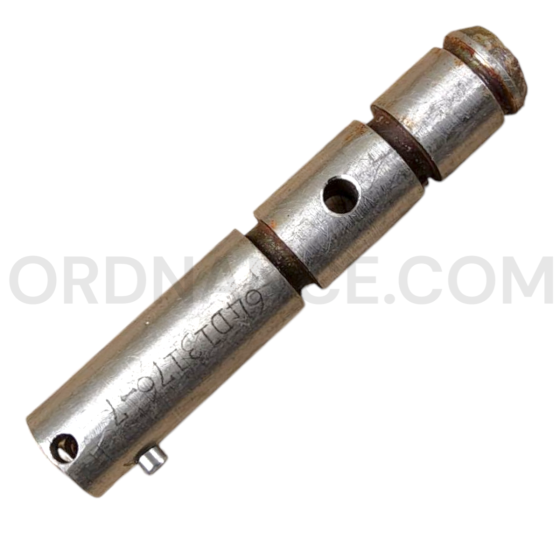

This is an original Metering Bomb R Orifice Assembly for the AC-130H Spectre Gunship, listed under Part Number 64D13176-7 and NSN 1095-00-911-8758. This highly specialized component is part of the precision ordnance delivery and bomb release control system used aboard the iconic AC-130H—one of the most heavily armed and versatile aircraft in U.S. Air Force history.

This assembly is new old stock U.S. military surplus. It remains in good unused condition and is an essential part for restorers, collectors of aviation ordnance hardware, or anyone maintaining documentation-quality accuracy in AC-130H system exhibits.

Historical Significance – The AC-130H Spectre Gunship

The Lockheed AC-130H Spectre was introduced in the early 1970s as a dedicated gunship variant of the C-130 Hercules, designed for close air support, armed reconnaissance, and interdiction missions. Operated primarily by the U.S. Air Force Special Operations Command (AFSOC), the AC-130H was fitted with a formidable array of weapons—including 20mm, 40mm, and 105mm guns—and an advanced fire control system.

Integral to its mission effectiveness was its internal bomb release and ordnance control system, which relied on components like the Metering Bomb R Orifice Assembly to precisely regulate the release of explosive ordnance. These systems were vital in ensuring controlled, accurate delivery during low-altitude night missions and coordinated strikes.

Retired in 2015 after decades of combat service across Vietnam, Grenada, Panama, Iraq, Afghanistan, and more, the AC-130H remains one of the most celebrated gunship platforms in military aviation history.

Product Details:

Item: Metering Bomb R Orifice Assembly
Application: AC-130H Spectre Gunship ordnance delivery subsystem
Part Number: 64D13176-7
NSN: 1095-00-911-8758
Condition: New Old Stock (NOS)
Function: Controls bomb release metering in guided drop or timed ordnance deployments

Ideal For:

Collectors of AC-130H Spectre hardware
Aviation museums and gunship restoration projects
Ordnance display builders and armament historians
Surplus and aviation part resellers
Educational institutions studying Cold War-era and modern aerial firepower

This AC-130H Metering Bomb R Orifice Assembly represents a rare opportunity to acquire a genuine component from one of the most feared airborne weapons platforms ever fielded by the U.S. military. These parts are increasingly difficult to find and rarely offered in unused condition.

Approx length 2.5", Approx width .5", Approx height .5", Approx weight .2lbs.

Pictures are stock images of our inventory. Unless otherwise noted, you will not be receiving the exact item shown in the pictures. The pictures are representative of the item's general condition. The item you receive might be slightly better, or worse, condition than was shown in the pictures.
