U.S. Army M114/M114A1 155-mm Towed Howitzer Fastening Pin, Drawing 5161287, NSN 1025-00-516-1287
Item Overview
This U.S. Army fastening and retaining pin is identified by drawing 5161287 and NSN 1025-00-516-1287. Its official military name is PIN, FASTENING.

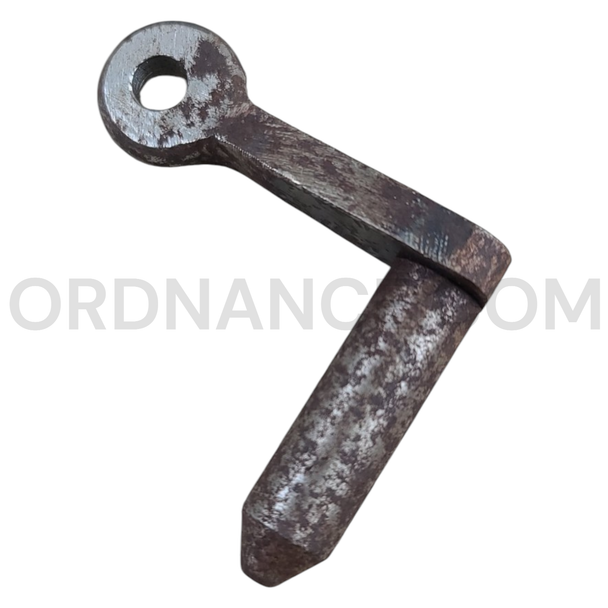

The pin is documented as artillery gun-carriage and mount hardware for the M114 and M114A1 155-mm towed howitzers. Its 0.43-inch tapered shank, offset arm, and 0.25-inch eye match the photographed part.
This listing is for the fastening pin only. It does not include the howitzer, gun carriage, shield, mount, or additional hardware.
Identification and Markings
- Official name: PIN, FASTENING
- Drawing number: 5161287
- NSN: 1025-00-516-1287
- NIIN: 00-516-1287
- Legacy FSN: 1025-516-1287
- Federal Supply Class: 1025 — Guns, over 150 mm through 200 mm
- U.S. Army design-control activity: CAGE 19204
- NSN assignment date: January 1, 1963
- Application: Artillery gun-carriage and mount hardware
- Applicable system: M114/M114A1 155-mm towed howitzer
- Manual documentation: TM 9-1025-200-20P repair-parts manual
The military specification calls for a 65-35 steel casting with olive-drab enamel applied everywhere except the shank.
The shank measures approximately 1.4375 to 1.5625 inches long and 0.427 to 0.432 inch in diameter. The first end has a 30-degree taper approximately 0.250 inch long.
The offset arm is approximately 0.203 inch thick and 0.656 to 0.688 inch wide before narrowing toward the eye. The eye is perpendicular to the pin axis and measures approximately 0.656 inch outside diameter with a 0.250-inch inside diameter.
Historical Background
The M114 was first designed in 1939 and entered production in 1941. Originally known as the 155-mm Howitzer M1, it served during World War II and was later redesignated M114.
The M114 became the standard U.S. 155-mm towed howitzer during the Korean and Vietnam Wars. Rock Island Arsenal assembled more than 10,000 of these howitzers between 1941 and 1953. Replacement by the newer M198 howitzer began in 1979.
Drawing 5161287 represents a small but traceable part of this important artillery system. Its verified NSN and drawing number give it more collector and research value than an unidentified piece of military hardware.
Condition
These are military-surplus parts and may show finish wear, scratches, minor oxidation, or storage marks. Refer to the pictures for a guide to the item’s general condition.
Ideal For
- M114 and M114A1 restoration projects
- U.S. Army artillery collections
- World War II, Korean War, and Vietnam War displays
- Museum and educational exhibits
- Military hardware and NSN collections
- Technical research and parts identification
Approx length 2", Approx width 2", Approx height 0.5", Approx weight 0.1 lbs.
