Description

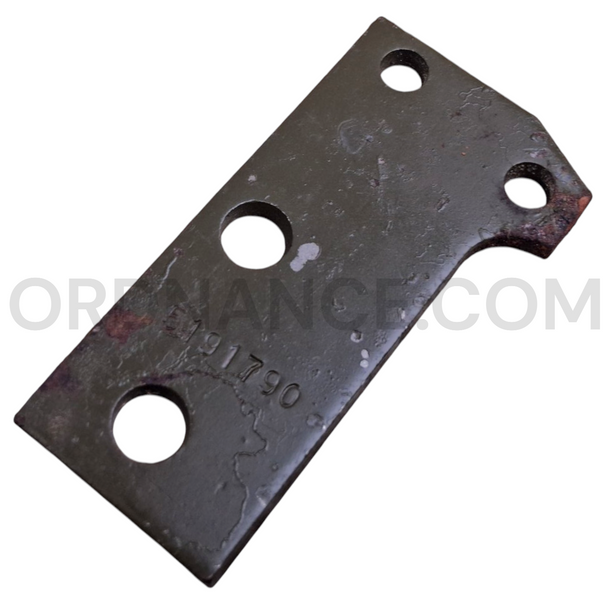

155mm M1/M114 Howitzer Traversing-Arc Closure Plate, P/N 5191790
The 155mm M1/M114 Howitzer Traversing-Arc Closure Plate, P/N 5191790 is a carriage component used on the traversing arc of the U.S. 155mm M1/M114 howitzer family.
This plate mounts to the traversing arc and retains the leather closure wiper associated with that mechanism. It is a closure and retaining component, not the complete traversing mechanism.
Historical Significance
The 155mm M1 howitzer entered production during World War II and was later redesignated M114. Rock Island Arsenal produced major carriage components and assembled howitzers in this family through the early 1950s. Packaging dated June 1952 places this closure plate in the Korean War-era military supply period.
What This Item Is and Does
The traversing arc is part of the carriage's horizontal-aiming mechanism. This closure plate fastens to that arc and holds the leather closure wiper in position as part of the larger traversing assembly.
Key Features
- Item identification: Traversing-Arc Closure Plate
- Part number: 5191790
- Drawing/label reference: A5191790
- Federal Stock Number: 1025-519-1790
- Modern National Stock Number: 1025-00-519-1790
- Documented system: 155mm M1/M114 howitzer carriage family
- Parent mechanism: traversing arc
- Related retained element: leather closure wiper
- Package marking: June 1952, Rock Island Arsenal
Why This Item Matters
The matched part number, stock number, manual identification, and dated Rock Island Arsenal packaging make this closure plate useful as a documented example of M1/M114 carriage hardware. Its specialized role also helps illustrate the smaller retaining and sealing components required within a heavy artillery traversing mechanism.
About This Item
The package identifies the component with A5191790 / 5191790, FSN 1025-519-1790, and a June 1952 packing date from Rock Island Arsenal. The later NSN format is 1025-00-519-1790.
Army maintenance documentation identifies this part as the closure plate used with the traversing arc and leather closure wiper.
All items are opened from the original packaging to verify its condition before shipment. If your prefer to receive an item in its original, unopened packaging, please indicate your request in the order comments at checkout. Please Note: If you request an item in its original, unopened packaging, we are unable to verify the item's condition prior to shipment.
Ideal For
This item is a strong fit for:
- 155mm M1 and M114 howitzer reference collections
- U.S. field-artillery component displays
- Military museums and educational exhibits
- Rock Island Arsenal history collections
- Artillery restoration-reference projects
Approx length 2.5", Approx width 1.25", Approx height .15", Approx weight .1lbs.
