152mm M409A1 High Explosive Anti Tank Tracer Multi-Purpose Round
$1,400.00
In stock
SKU
152mm M409A1 High Explosive Anti Tank Tracer Multi-Purpose Round
Toggle Nav
The #1 Online Source for Military Museum Displays • Movie Props • Training Aids • Historical Artifacts

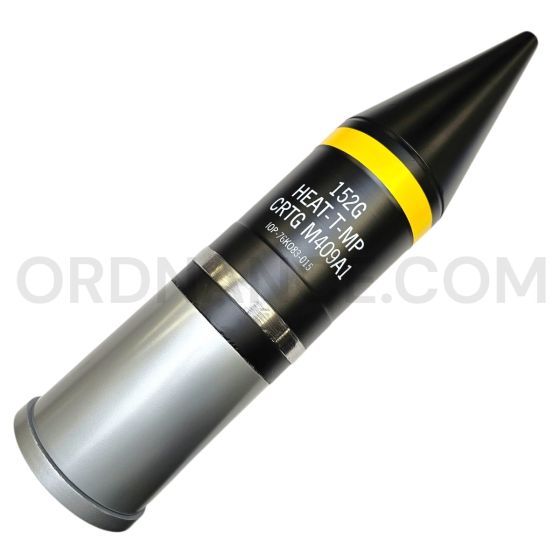

This inert restored replica 152mm M409A1 High Explosive Anti-Tank Tracer Multi-Purpose (HEAT-MP-T) Round is an exceptional display piece built using a genuine M411A1 Target Practice Tracer projectile, which has been professionally restored and painted to accurately replicate the iconic M409A1 HEAT round. This round is completed with a faithfully reproduced M157 combustible case, an original U.S. artillery primer/flash tube, and a custom-made parkerized steel locking ring—resulting in a museum-grade replica ideal for collectors, educators, and military vehicle restorers.
Historical Context
The 152mm M409A1 HEAT-MP-T Round was one of the most versatile and powerful anti-armor rounds used by the U.S. Army during the Cold War. It was developed for the M551 Sheridan Armored Reconnaissance/Airborne Assault Vehicle and the M60A2 “Starship” Main Battle Tank, both of which used a 152mm gun-launcher system capable of firing both conventional rounds and guided missiles (like the MGM-51 Shillelagh).
The M409A1 HEAT round was designed to defeat enemy armor using a shaped charge warhead, with additional capability against fortified positions thanks to its multi-purpose payload. It featured a combustible case (M157), which burned away completely upon firing, leaving no spent cartridge to extract—a key advantage for compact vehicle turrets. The tracer element allowed gunners to track their shots visually, aiding target acquisition and correction during combat.
Due to the combustible nature of the M157 case, surviving examples of complete rounds are exceedingly rare. This inert restored replica was built to preserve and represent the historical and technical significance of this unique ammunition system.
Product Specifications
- Round Type: Replica M409A1 High Explosive Anti-Tank Tracer Multi-Purpose (HEAT-MP-T)
- Projectile: Real M411A1 TP-T projectile, modified for display
- Case: Replica M157 combustible case (non-functional, inert)
- Primer/Flashtube: Original surplus U.S. artillery component (inert)
- Locking Ring: Newly fabricated parkerized steel locking ring
- Condition: Professionally restored, completely inert, display-ready
Ideal For:
- Cold War artillery collectors
- M551 Sheridan or M60A2 restoration projects
- Military vehicle museums and ordnance displays
- Educational institutions and technical instructors
- Serious collectors of U.S. armor and tank munitions
This replica 152mm M409A1 HEAT round is one of the most accurate and complete examples available for display. Whether you’re restoring a tank, curating a museum exhibit, or building a Cold War-era ordnance collection, this piece captures the bold innovation of American armored warfare during the mid-to-late 20th century.
Approx length 44", Approx width 4.5", Approx height 4.5", Approx weight lbs.
