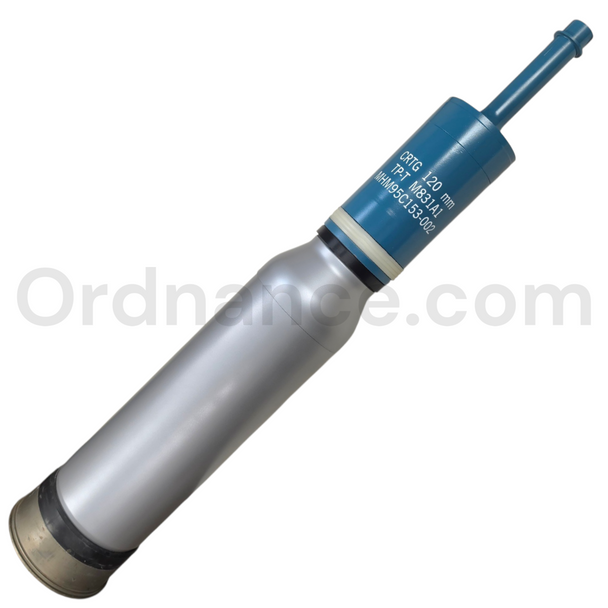

120mm M831A1 Target Practice Tracer Round

Own a standout piece of modern U.S. tank ammunition history with this 120mm M831A1 Target Practice-Tracer display round. Built with a real M831A1 casing base and primer assembly, a real M831A1 projectile, and a locking ring, this round captures the look and history of the training ammunition used with the 120mm M256 smoothbore cannon.

This display assembly is completed with a 3D-printed combustible casing and 3D-printed obturating band. It is built for collectors, museums, armor displays, and training-aid collections where the history and appearance of modern Abrams tank ammunition matter.

Historical Significance

The M831A1 TP-T was developed as a 120mm Target Practice-Tracer cartridge for U.S. tank gunnery training. Its job was to simulate the ballistic performance of the M830 HEAT-MP-T service cartridge, giving crews a training round tied directly to real Abrams tank fire-control and gunnery practice. Official ammunition data identifies the M831A1 as a fixed 120mm target-practice round with tracer for use in the 120mm M256 smoothbore cannon.

The M831A1 also represents the evolution of 120mm tank training ammunition after the earlier M831. Reference data notes that the M831A1 was developed from 1989 to 1992, type classified in April 1993, materiel released in September 1994, and fielded for soldier training in 1995.

For collectors, that gives this round strong modern armor appeal. It belongs to the M1A1 / M1A2 Abrams era, when 120mm ammunition became the standard language of U.S. tank firepower.

Real Components and Display Construction

This display round includes a mix of authentic M831A1 components and newly made display parts.

Included construction details:

• Real M831A1 casing base
• Real primer assembly
• Real M831A1 projectile
• Locking ring
• 3D-printed combustible casing
• 3D-printed obturating band
• 120mm M831A1 TP-T display configuration
• Real original storage container

The combination of real parts and reproduction display components gives this piece more collector interest than a fully fabricated replica. The original casing base and projectile give it a direct connection to the M831A1 ammunition family. The 3D-printed casing and band complete the display without using a live combustible cartridge case.

What This Round Represents

The original M831A1 was a training cartridge, not a high-explosive combat round. Its purpose was to support realistic tank-gunnery training while matching the behavior of the M830 HEAT-MP-T service round. Army portfolio data describes the M831A1 as a training cartridge for the 120mm M256 Smooth Bore Cannon, with the original service cartridge using a stub metal case with combustible sidewall and a projectile made with a steel spike, aluminum body, and slotted ring stabilizer.

Key Features

• 120mm M831A1 Target Practice-Tracer display round
• Built with a real M831A1 casing base
• Includes a real primer assembly
• Includes a real M831A1 projectile
• Includes locking ring
• Uses a 3D-printed combustible casing
• Uses a 3D-printed obturating band
• Represents Abrams-era 120mm tank-gunnery training ammunition
• Strong display piece for modern armor, ordnance, and museum collections
• Display-only assembly; not intended for loading, chambering, firing, modification, or operational use
• The condition and making of the original casing base will vary

The M831A1 is also a great subject. It is not just a generic 120mm shell. It is a specific Abrams training cartridge tied to the M256 gun system and modern tank crew qualification. Original service data lists the M831A1 as DODIC C784, with a listed service-round length of 981 mm / 38.62 inches and weight of 22.9 kg / 50.5 pounds. Those service-round figures are provided for historical context and may not match this display assembly exactly.

For a collection focused on Abrams tanks, 120mm ammunition, modern U.S. armor, or tank training rounds, this is a strong centerpiece item.

Ideal For

This round is a strong fit for:

• 120mm tank ammunition collectors
• M831A1 TP-T display collections
• M1A1 and M1A2 Abrams exhibits
• modern U.S. armor displays
• inert ordnance and training-aid collections
• museum and classroom reference displays
• collectors of real projectile and casing-base assemblies
• buyers looking for a 120mm display round with authentic M831A1 components
