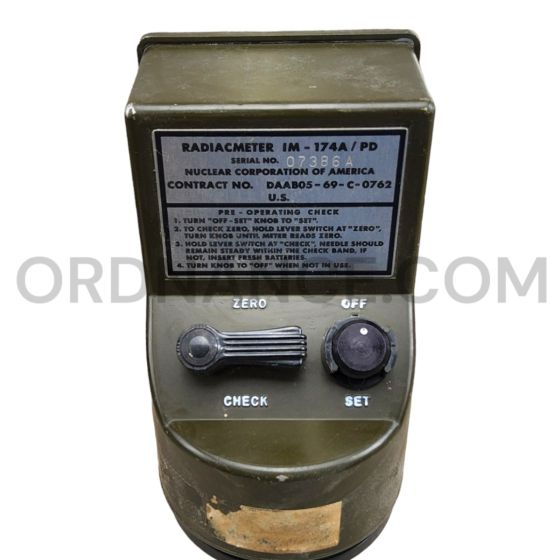

The IM-174 series radiacmeter is a portable tactical monitoring and survey instrument designed to measure
the dose rate of gamma radiation. It is normally issued on the basis of one per platoon-size unit.
Once nuclear operations have started, company battery troop units use the IM-174 series radiacmeter
to monitor for radiation. When monitoring reports do not provide sufficient information for the evaluation of
contaminated areas, a radiological survey may be directed. The IM-174 series radiacmeter is one instrument
used to perform radiological surveys which determine the extent and dose rates of radiation in the area.

The IM-174 series radiacmeter is a high-range dose rate meter that measures gamma radiation
in units from 0 to 500 cGy (rad) /hr. The IM-174A PD may be equipped with an instrument light.
There are two types of instrument lights: a waterproof type and a non-waterproof type.
The IM-174B PD has a built-in instrument light, which is actuated by pushing on the function switch.
The B model is similar to the IM-174A PD in all other capabilities and characteristics.

Approx length 8", Approx width 6", Approx height 6", Approx weight 3.9lbs.

Pictures are of the actual item you will receive.
